Tailwheel Fork for Van's RV Aircraft

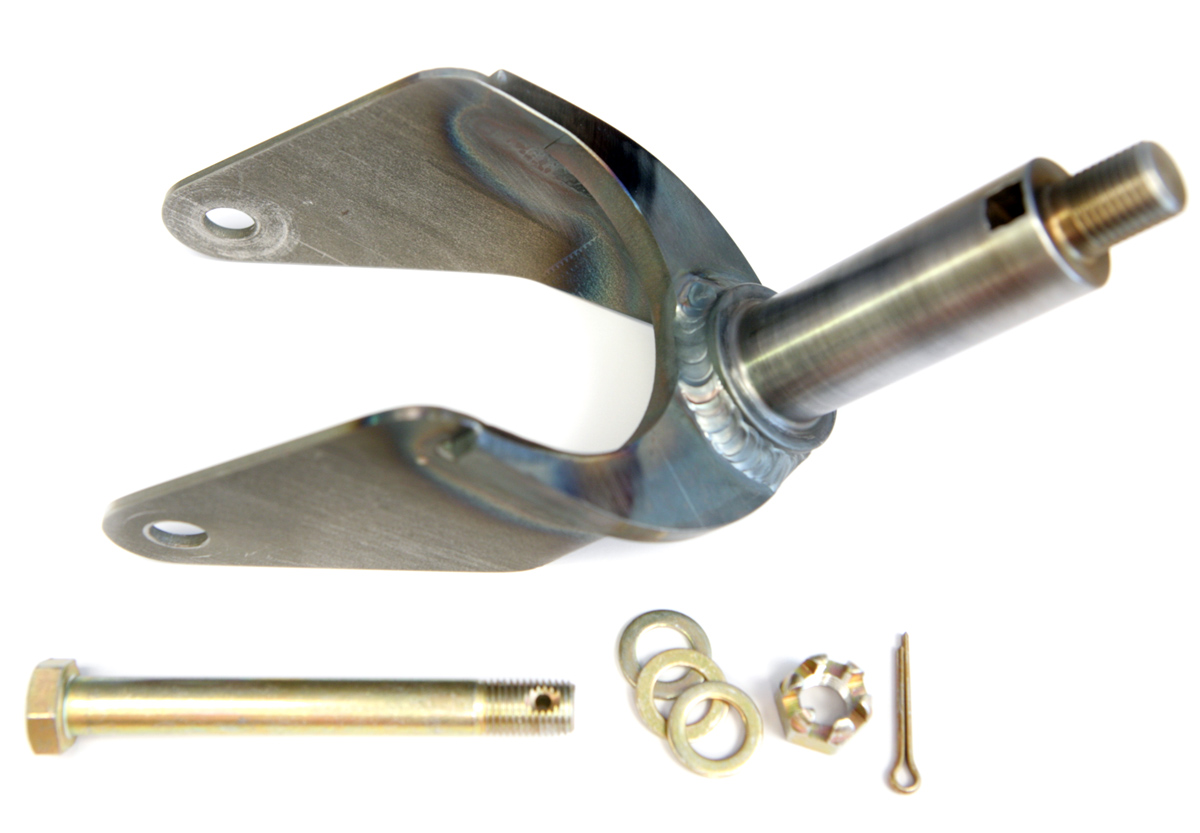

Plain Tailwheel fork
  • Plain Tailwheel fork
  • The Tailwheel Fork after a hard day of testing bad landings.
  • Image 3
  • 3D Rendering of the Tailwheel Fork
  • Gloss Black powdercoated fork
Price:
$155.00
SKU:
TWFORK
Availability:
In Stock - Usually ships in 24 hours
Shipping:
Calculated at checkout
Quantity:

Product Description

JD Air Parts Tailwheel Fork for RV's

  • Machined and welded from 4130 Chromoly aircraft grade steel.
  • Features a much improved ground clearance and rigid design.
  • Very lightweight as compared to other forks at just under 14oz's.
  • Kit includes all needed hardware for replacement of stock fork including extra washers for various tailwheel models.
  • Available Powder Coated Black or uncoated. *select color above.

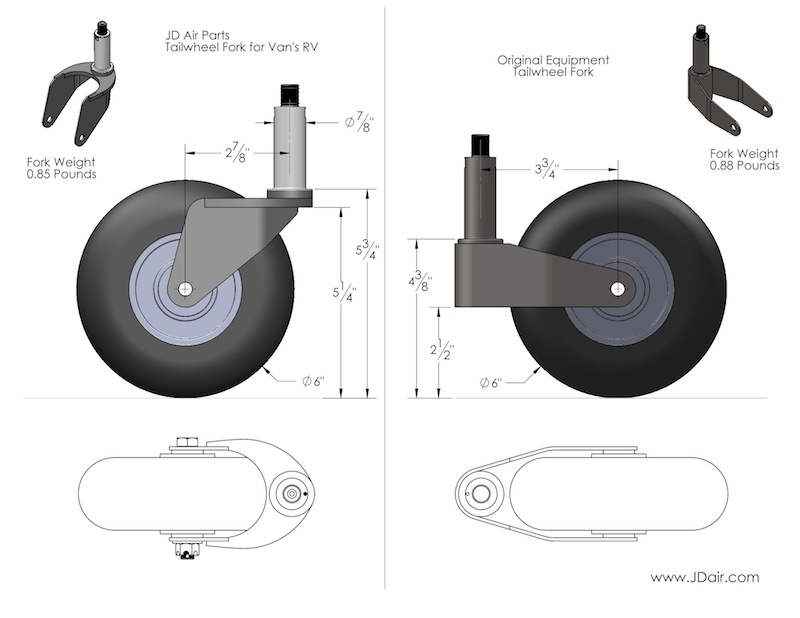

  • See the photo's for more information and specs.


Product Videos

CNC Turning of the Tailwheel Shaft (03:05)
Machining of our Tailwheel Fork pivot shaft. After the material is turned and threaded the milling tools or live tooling begins to drill the part on the X & Z while the material rotates on the C axis. After the part is cut off and inspected it goes back into the spindle to turn and drill the bottom of the part. Notice the thru-coolant 5/8" dia. drill.
